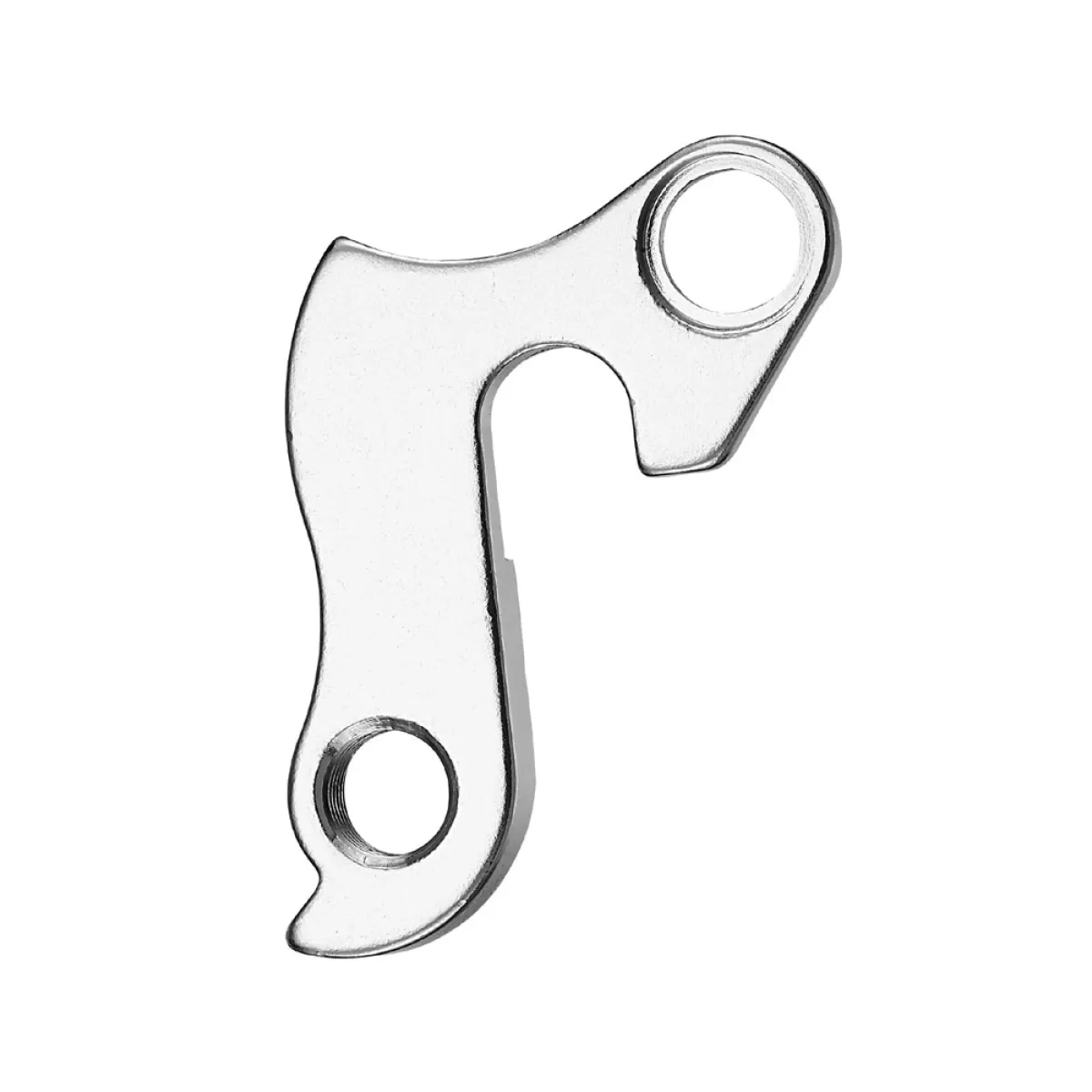

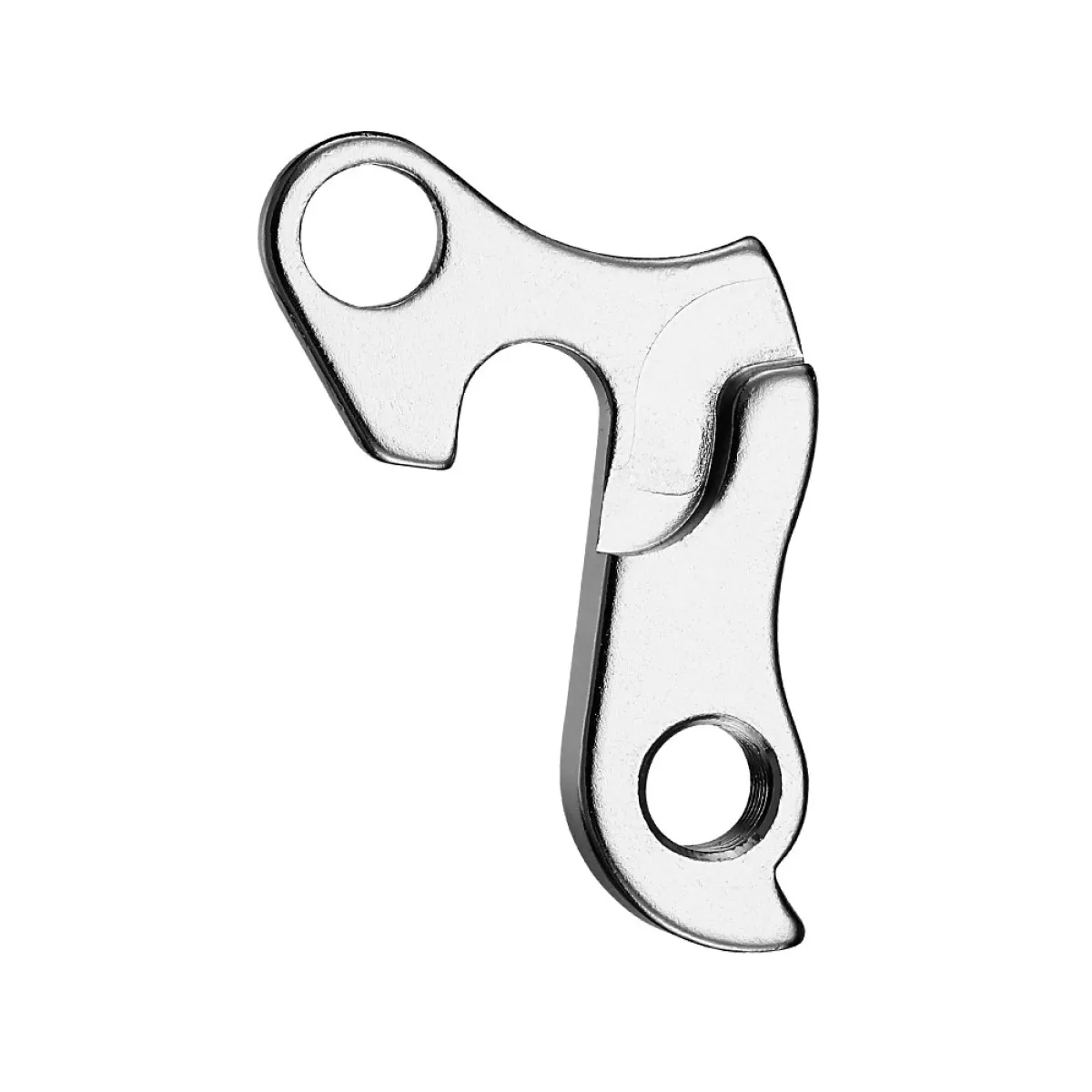

Technical characteristics and dimensions of the frame bracket

• Brand: Union (Marwi)
• Model: GH-255
• Material: aluminium
• Color: chrome gray
• Overall length: 68 mm
• Fixing distance: 47 mm
• Upper fixing thread diameter: 8 mm
• No threading: 0.75
• Derailleur mounting thread diameter: 10 mm
• No threading: 1.00
• Mounting type: par outside with screw and nut (leg and frame not threaded)
• Leg dimensions detailed on the diagram

Applications:

Bulls 7005-2000
Bulls 7007-2000
Bulls 8505-2000
Bulls 9005-2000
Bulls 8009 Cr. -2000
Big Bulls Free 2014-2017
Bulls Bushtail 2014-2017
Bulls Cross Bike 2014-2017
Bulls Cross Flyst 2014-2017
Bulls Cross Lite 2014-2017
Bulls Cross Lite E 2014-2017
Bulls Cross Mover 2014-2017
Bulls Cross Rider E 2014-2017
Bulls Dail-E Grinder 2014-2017
Bulls E-Core Cross 2014-2017
Bulls LT 2014-2017
Bulls Nandi 2014-2017
Bulls Nova Team 2014-2017
Bulls Pulsar 2014-2017
Bulls Pulsar Cross 2014-2017
Bulls Sharptail 2014-2017
Bulls TWENTY4 E 2014-2017
Bulls TWENTY6 E 2014-2017
Bulls Urban 2014-2017
Bulls Vanida 2014-2017
Bulls Wild Card 2014-2017
Bulls Wildcross 2014-2017
Bulls Wildtail 2014-2017
Bulls Zarena 2014-2017

Trek Cali Carbon 142x12 2014
Trek Farley 177x12 2014
Trek Stache 142x12 2014
Trek Stashe 7/8 142x12 Thru 2013
Trek Superfly HT 142x12 2014
Trek Superfy Elite / Pro SL 142x12 Thru 2013
