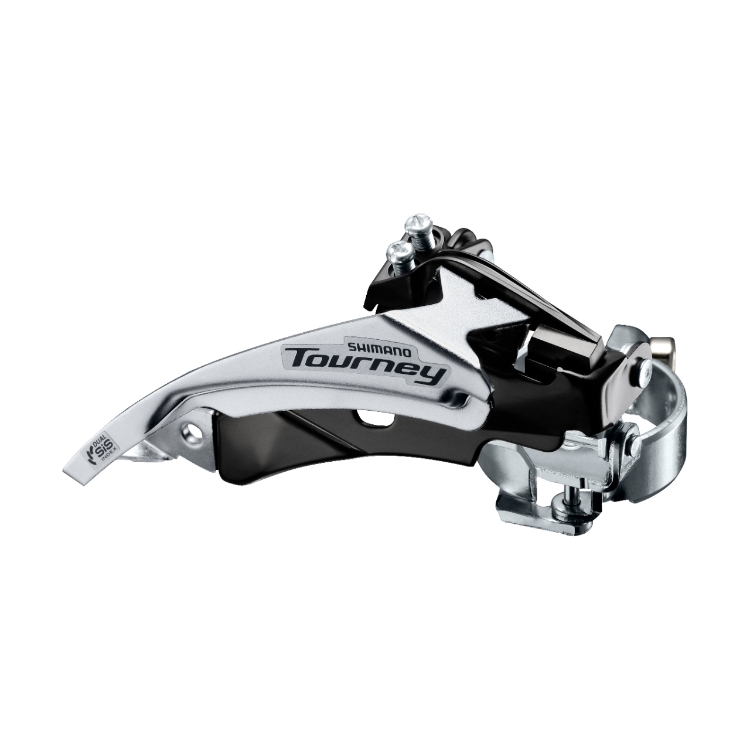

SHIMANO TOURNEY TY - Front Derailleur - TOP SWING - Clamp Band Mount - 3x7/6-speed

Compatible with DUAL SIS index shifting, the SHIMANO TOURNEY TY front derailleur is perfect for 3x7 and 3x6 speed drivetrains.

PRODUCT SPECIFICATIONS
MODEL NO FD-TY510-TS6
SERIES TOURNEY
Color Series color
Front speeds 3
Rear speeds 7/6
Compatible chain HG 8/7/6-speed
Action|TOP SWING ✔
Mount|Clamp band (mm)|28.6 X (w/ S size adapter)
Mount|Clamp band (mm)|31.8 X (w/ M size adapter)
Mount|Clamp band (mm)|34.9 ✔
Cable route type|Dual-pull ✔
Chain line (mm) 47.5/50
Chainstay angle (deg.) 66-69
Top gear teeth 48T
Total capacity 20T
Applicable top-mid tooth difference 10T
Angled clamp band design ✔
