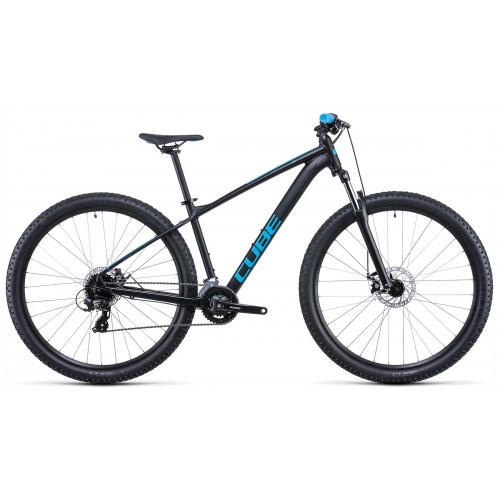

Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.

Available Sizes:

M, L, XL

FRAME
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
FORK
SR Suntour XCE, 100mm
BRAKE SYSTEM
Tektro MD-280/U310R, Mech. Disc Brake (160/160)
REAR DERAILLEUR
Shimano RD-TX800, 8-Speed
FRONT DERAILLEUR
Shimano FD-M315, Top Swing, 31.8mm Clamp
SHIFTERS
Shimano SL-M315, Rapidfire-Plus
BOTTOM BRACKET
Feimin FP-B902N, 73mm BSA
CRANKSET
Shimano FC-M315, 36x22T
CASSETTE
Shimano CS-HG200, 12-32T
CHAIN
KMC Z8.3
FRONT HUB
CUBE Alloy Light, QR, 6-Bolt
REAR HUB
CUBE Alloy Light, QR, 6-Bolt
RIMS
CUBE ZX20, 32H, Disc
TYRES
CUBE IMPAC Smartpac, 2.25
STEM
CUBE Performance Stem, 31.8mm
HANDLEBAR
CUBE Rise Trail Bar, 680mm
GRIPS
ACID React
SEAT POST
CUBE Performance Post, 27.2mm
SEATCLAMP
CUBE Varioclose, 31.8mm
SADDLE
Natural Fit Venec Lite
HEADSET
CUBE FPH863, Semi-Integrated
PEDALS
CUBE PP MTB
WEIGHT
14,8 kg
COLOUR
black´n´blue
