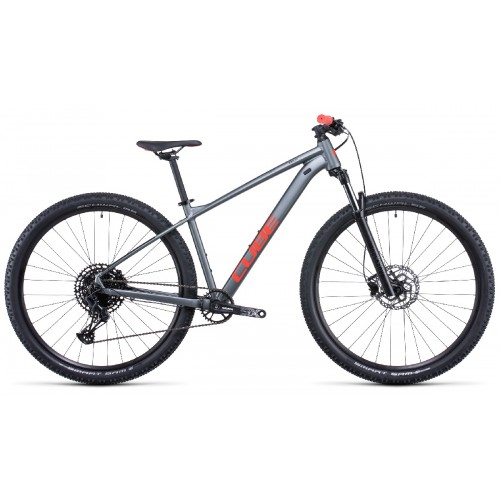

Completely revised for 2022, the brand-new Analog's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube and tapered head tube for more confident handling, cables run internally for reduced maintenance, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Analog that fits perfectly. And, as your skills increase, there's scope to fit a dropper post upgrade.

COMPONENTSFRAME
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
SIZE
Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")
FORK
RockShox Judy Silver TK Coil, 100mm, Lockout
BRAKE SYSTEM
Clarks Clout 1, Hydr. Disc Brake (160/160)
REAR DERAILLEUR
Sram SX Eagle™, 12-Speed
SHIFTERS
Sram SX Eagle™ Trigger
BOTTOM BRACKET
Sram Power Spline, 73mm BSA
CRANKSET
Sram SX Eagle™ Powerspline, 32T, 175mm
CASSETTE
Sram PG-1210 Eagle™, 11-50T
CHAIN
Sram SX Eagle™
FRONT HUB
CUBE Alloy Light, QR, 6-Bolt
REAR HUB
CUBE Alloy Light, QR, 6-Bolt
RIMS
CUBE ZX20, 32H, Disc
TYRES
Schwalbe Smart Sam, Active, 2.25
STEM
CUBE Performance Stem SL, 31.8mm
HANDLEBAR
CUBE Rise Trail Bar, 680mm
GRIPS
ACID React
SEAT POST
CUBE Performance Post, 27.2mm
SEATCLAMP
CUBE Varioclose, 31.8mm
SADDLE
Natural Fit Venec Lite
HEADSET
CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
PEDALS
ACID PP MTB
WEIGHT
13,8 kg
COLOUR
flashgrey´n´red
